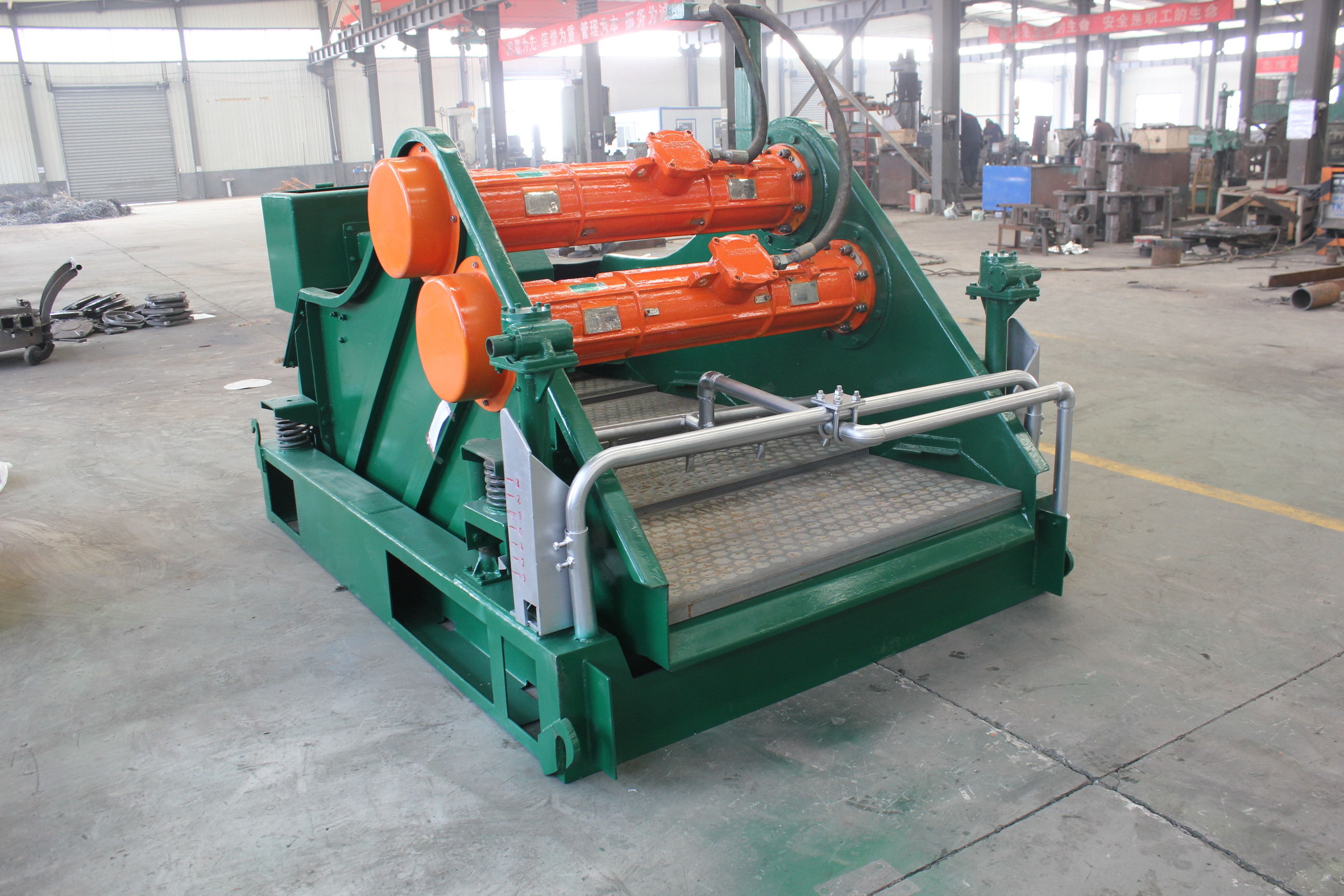

I produced TCZSP double track vibrating screen is a liquid for treating a variety of solid particles of special equipment for removing liquid solid phase particles, increasing processing capacity, energy consumption has a very important role. On the basis of the advantages and disadvantages of the shaker at home and abroad, the design out of. Vibrating screen can be adjusted according to the actual situation of the scene of the trajectory of the vibrating sieve to achieve the best working conditions, effectively preventing the paste sieve, sieve blocking, running pulp phenomenon, applicable to all types of mud purification system.
技術參數(shù)
technical parameter
|
型號 Model |
TCZSP X3-1 |
TCZSP X3-2 |
TCZSP X3-3 |
|
拋擲指數(shù) |
5-7.8g |
5-7.8g |
5-7.8g |
|
振幅 |
5-8mm |
5-8mm |
5-8mm |
|
處理量 |
50-80L/S |
120-160L/S |
160-240L/S |
|
篩網面積 |
2.75㎡ |
5.5㎡ |
8.25㎡ |
|
激振轉速 |
1420rpm |
1420rpm |
1420rpm |
|
激振力 |
2x30kn/1x20kn |
4x30kn/2x20kn |
6x30kn/3x20kn |
|
電機功率 |
2x1.5kw/1x0.8kw |
4x1.5kw2x0.8kw |
4x1.5kw/3x0.8kw |
|
外形尺寸 (length x width x height) |
3000x1900x1450mm |
3000x3795x1450mm |
3000x5990x1450mm |
|
重量（kg） Weight（kg） |
1750kg |
3470kg |
5200kg |
